Name: ZAi-V100
Brand: HongKong Global Intelligence Technology Group Limited

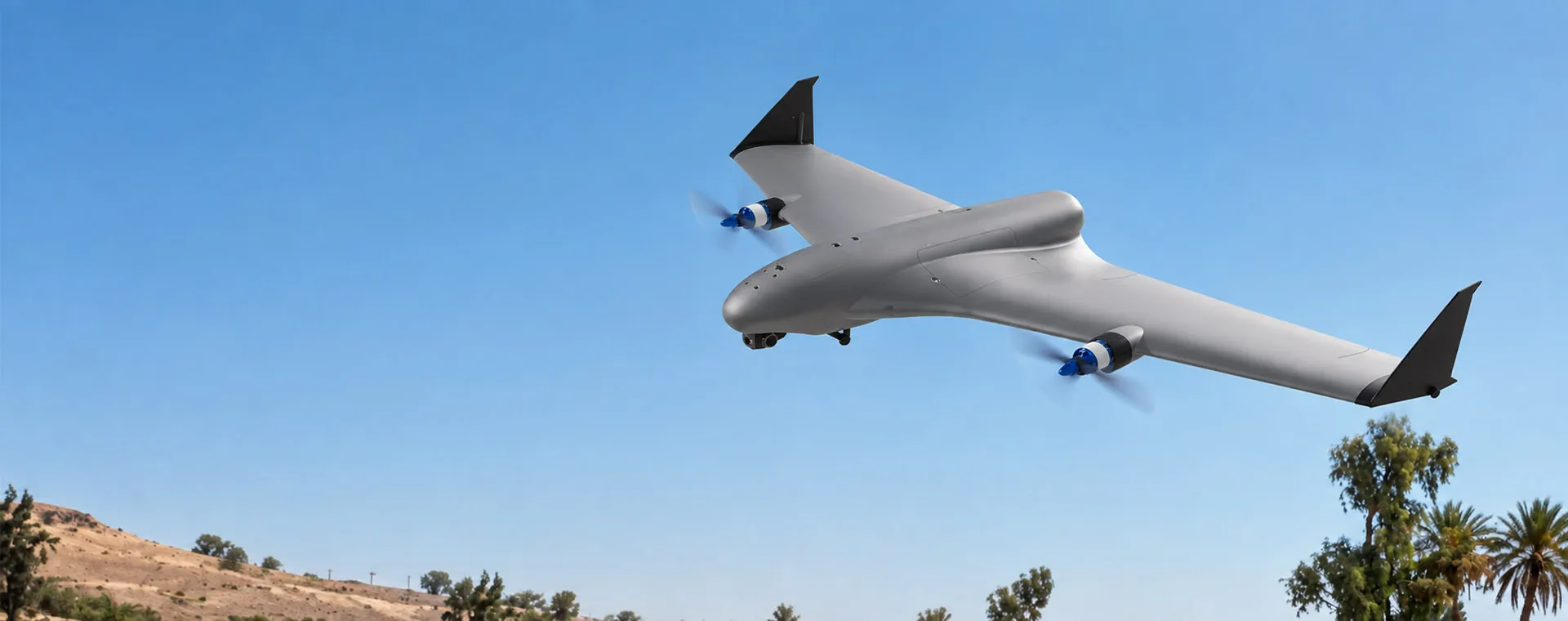

ZAi-V100 VTOL Fixed-Wing Drone Specifications
1. Aircraft Specifications
Parameter	Value
Weight (Excl. Battery, Incl. C12)	2.82 kg (Corrected from 2.82g in original source)
Aircraft Dimensions (L×W×H)	1420.1 × 776 × 204.6 mm
Propeller Size	Length 30.5 cm (12X8, 1 CW & 1 CCW) (1 Clockwise, 1 Counter-Clockwise)
Motor Wheelbase	740 mm
Input Voltage	6S (25.2V, 2x 3S in series)
Battery Capacity	22000 mAh
Battery Weight	912 g
Max Flight Time	1h - 2h
Max Flight Range	70 - 150 km
Operating Temperature	0 ~ 45 °C
GNSS	GPS + GLONASS + Galileo
Operating Frequency	2.4 GHz / 5.8 GHz
RF Power	23 dBm
Max Video Transmission Distance	30 km
2. Payload / Camera Specifications
Visible Light Camera
Parameter	Value
Lens Pixel	5 MP
Lens Focal Length	f = 3.5 ~ 4.75 mm
Aperture	F2.0
FOV (HFOV / VFOV / DFOV)	100° / 52° / 122° (Horizontal / Vertical / Diagonal)
Zoom Ratio	30x Digital Zoom
Video Transmission Resolution	1280 × 720
Visible Light SD Card Video Resolution	2560 × 1440
Video Storage Format	MP4
Photo Resolution	2560 × 1440
Photo Storage Format	JPEG
Supported Storage Card Type	MicroSD Card (Max 256GB)
Supported File System	FAT32
Thermal Imaging Camera
Parameter	Value
Resolution	384 × 288
Frame Rate	≤ 25 Hz
Thermal Time Constant	< 10 ms
Focal Length	7 mm
Aperture	F1.0
FOV	24.8° × 18.7° (Field of View)
Spectral Range	8 ~ 14 μm
3. Remote Controller Specifications
Parameter	Value
Display Screen	10.1-inch High-Brightness Screen
Resolution	1920 × 1200
Processor	Qualcomm 6nm Processor
Operating System	Android 14
Dimensions	346 × 196.5 × 89.4 mm
Weight	1.5 kg
Battery	20000 mAh
Operating Time	6 ~ 8 hours
RAM	8 GB
System Storage (ROM)	128 GB
Operating Frequency	2.4 GHz / 5.8 GHz
Number of Channels	16
Dynamic Frequency Hopping	Auto Frequency Hopping
RF Power	23 dBm @ CE / FCC
Max Remote Distance	30 km (Altitude 200m, Line of Sight)
Operating Temperature	-10 °C ~ 55 °C
Charging Interface	TYPE-C
External Interfaces	USB-A (Upgrade Port), SIM Card Slot, TYPE-C, RJ45, Optical Fiber FC (Unused)
